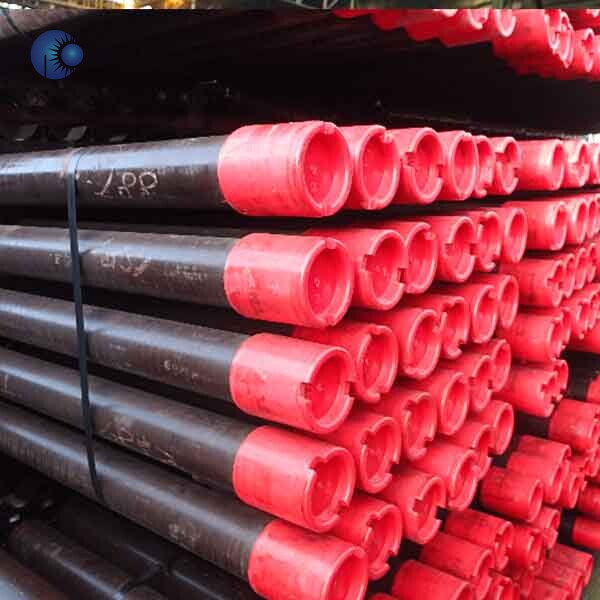

API 5CT casing Pipe Cash on delivery Casing Pipe Free sampling
Pipe Type:Oil casing, API 5CT casing,API Spec 5CT J55 K55 N80 L80 Seamless Steel Oil Well Casing Pipe
Outer diamater(OD):114.30mm-508mm
Wall thickness(WT):5.21mm-16.13mm
Length:R1; R2; R3
Gread：J55;K55;N80-Q;L80-1;L80-9Cr;L80-13Cr,C95，P10
MOQ:1TON
Standard:API 5CT PSL1/PSL2 J55,K55,N80-1,N80-Q,
API 5CT PSL1/PSL2 L80-1, L80-9Cr,L80-13Cr,C90, C95, P110, Q125
Phone : +86 13310652223
Email : info@sdpysteel.com
Wechat :BW15610169176
Whatsapp : +8613310652223
Contact us →

Product Details


Pipe Type:Oil casing, API 5CT casing,API Spec 5CT J55 K55 N80 L80 Casing Pipe;Seamless Steel Oil Well Casing Pipe

Outer diamater(OD):114.30mm-508mm

Wall thickness(WT):5.21mm-16.13mm

Length:R1; R2; R3

Gread：J55;K55;N80-Q;L80-1;L80-9Cr;L80-13Cr,C95，P10

Standard:API 5CT PSL1/PSL2  J55,K55,N80-1,N80-Q,
 API 5CT PSL1/PSL2  L80-1, L80-9Cr,L80-13Cr,C90, C95, P110, Q125

Thread types:STC;LTC;BTC;VAM TOP equivalent;New VAM equivalent;CS equivalent;HSC equivalent;NUE;EUE;LTC;XC

Thread: NUE, EUE, VAM, STC, LTC, BTC, XC, VAM TOP, NEW VAM,HYDRILL CS

Application: Casing Pipe is widely used for fastening oil and gas well wall or borehold, with bigger diameter than tubing, including surface casings, technical casings and oil layer casings.

Production technology:Plain pipe-end upsetting- Austenite treatment-Quenching-Tempering-straightening-(Non-Destructive Testing)- Threading-Thread inspection-coupling MPI-phosphating-Coupling make up-Drifting-Hydrostatic testing-Measuring&Weight-Marking&Stenciling-Coating-Packing Casing and tubing-Transportation

vailable Sizes

Category: ERW, HFW or SMLS

Standards:H-40, J-55, K-55, C-75, L-80, N-80, C-95, AS-95, P-110, L80-13CR

Steel Grade: H40, J55, K55, N80

Connections

API 5CT is applicable to following connections which complied with API SPEC 5B:

• SC: Short round thread casing

• LC: Long ound thread casing

• BC: Buttress thread casing

• NU: Non-upset tubing

• EU: External upset tubing

Technical parameters of casing pipe:

SizesOD
D
mm		Weight
kg/m		WT
t
mm		Type of end




H40J55
K55		M65L80
C95		N80
1、Q		C90
T95		P110Q125
12










12345678910111213
4-1/2
4-1/2
4-1/2
4-1/2
4-1/2		9.50
10.50
11.60
13.50
15.10		114.30
114.30
114.30
114.30
114.30		14.14
15.63
17.26
20.09
22.47		5.21
5.69
6.35
7.37
8.56		PS
–
–
–
–		PS
PSB
PSLB
–
–		PS
PSB
PLB
PLB
–		–
–
PLB
PLB
–		–
–
PLB
PLB
–		–
–
PLB
PLB
–		–
–
PLB
PLB
PLB		–
–
–
–
PLB
5
5
5
5
5
5
5		11.50
13.00
15.00
18.00
21.40
23.20
24.10		127.00
127.00
127.00
127.00
127.00
127.00
127.00		17.11
19.35
22.32
26.79
31.85
34.53
35.86		5.59
6.43
7.52
9.19
11.10
12.14
12.70		–
–
–
–
–
–
–		PS
PSLB
PSLBE
–
–
–
–		PS
PSLB
PLB
PLB
PLB
–
–		–
–
PLBE
PLBE
PLB
PLB
PLB		–
–
PLBE
PLBE
PLB
PLB
PLB		–
–
PLBE
PLBE
PLB
PLB
PLB		–
–
PLBE
PLBE
PLB
PLB
PLB		–
–
–
PLBE
PLB
PLB
PLB



SizesOD
D
mm		Weight
kg/m		WT
t
mm		Type of end
H40J55
K55		M65L80
C95		N80
1、Q		C90
T95		P110Q125
12
12345678910111213
5-1/2
5-1/2
5-1/2
5-1/2
5-1/2
5-1/2
5-1/2
5-1/2
5-1/2
5-1/2
5-1/2
5-1/2		14.00
15.50
17.00
20.00
23.00
26.80
29.70
32.60
35.30
38.00
40.50
43.10		139.70
139.70
139.70
139.70
139.70
139.70
139.70
139.70
139.70
139.70
139.70
139.70		20.83
23.07
25.30
29.76
34.23
39.88
44.20
48.51
52.53
56.55
60.27
64.14		6.20
6.98
7.72
9.17
10.54
12.70
14.27
15.88
17.45
19.05
20.62
22.22		PS
–
–
–
–
–
–
–
–
–
–
–		PS
PSLBE
PSLBE
–
–
–
–
–
–
–
–
–		PS
PSLB
PLB
PLB
PLB
–
–
–
–
–
–
–		–
–
PLBE
PLBE
PLBE
–
–
–
–
–
–
–		–
–
PLBE
PLBE
PLBE
–
–
–
–
–
–
–		–
–
PLBE
PLBE
PLBE
P
P
P
P
P
P
P		–
–
PLBE
PLBE
PLBE
–
–
–
–
–
–
–		–
–
–
–
PLBE
–
–
–
–
–
–
–
6-5/8
6-5/8
6-5/8
6-5/8		20.00
24.00
28.00
32.00		168.28
168.28
168.28
168.28		29.76
35.72
41.67
47.62		7.32
8.94
10.59
12.06		PS
–
–
–		PSLB
PSLBE
–
–		PSLB
PLB
PLB
–		–
PLBE
PLBE
PLBE		–
PLBE
PLBE
PLBE		–
PLBE
PLBE
PLBE		–
PLBE
PLBE
PLBE		–
–
–
PLBE
7
7
7
7
7
7
7		17.00
20.00
23.00
26.00
29.00
32.00
35.00		177.80
177.80
177.80
177.80
177.80
177.80
177.80		25.30
29.76
34.23
38.69
43.16
47.62
52.09		5.87
6.91
8.05
9.19
10.36
11.51
12.65		PS
PS
–
–
–
–
–		–
PS
PSLBE
PSLBE
–
–
–		–
PS
PLB
PLB
PLB
PLB
–		–
–
PLBE
PLBE
PLBE
PLBE
PLBE		–
–
PLBE
PLBE
PLBE
PLBE
PLBE		–
–
PLBE
PLBE
PLBE
PLBE
PLBE		–
–
–
PLBE
PLBE
PLBE
PLBE		–
–
–
–
–
–
PLBE
7
7
7
7
7
7		38.00
42.70
46.40
50.10
53.60
57.10		177.80
177.80
177.80
177.80
177.80
177.80		56.55
63.54
69.05
74.56
79.77
84.97		13.72
15.88
17.45
19.05
20.62
22.22		–
–
–
–
–
–		–
–
–
–
–
–		–
–
–
–
–
–		PLBE
–
–
–
–
–		PLBE
–
–
–
–
–		PLBE
P
P
P
P
P		PLBE
–
–
–
–
–		PLBE
–
–
–
–
–
7-5/8
7-5/8
7-5/8
7-5/8
7-5/8
7-5/8
7-5/8
7-5/8
7-5/8
7-5/8		24.00
26.40
29.70
33.70
39.00
42.80
45.30
47.10
51.20
55.30		193.68
193.68
193.68
193.68
193.68
193.68
193.68
193.68
193.68
193.68		35.72
39.29
44.20
50.15
58.04
63.69
67.41
70.09
76.19
82.30		7.62
8.33
9.52
10.92
12.70
14.27
15.11
15.88
17.45
19.05		PS
–
–
–
–
–
–
–
–
–		–
PSLBE
–
–
–
–
–
–
–
–		–
PSLB
PLB
PLB
–
–
–
–
–
–		–
PLBE
PLBE
PLBE
PLBE
PLB
PLB
PLB
–
–		–
PLBE
PLBE
PLBE
PLBE
PLB
PLB
PLB
–
–		–
PLBE
PLBE
PLBE
PLBE
PLB
PLB
PLB
P
P		–
–
PLBE
PLBE
PLBE
PLB
PLB
PLB
–
–		–
–
–
–
PLBE
PLB
PLB
PLB
–
–
7-3/446.10196.8568.6015.11–––PPPPP
8-5/8
8-5/8
8-5/8
8-5/8
8-5/8
8-5/8
8-5/8		24.00
28.00
32.00
36.00
40.00
44.00
49.00		219.08
219.08
219.08
219.08
219.08
219.08
219.08		35.72
41.67
47.62
53.57
59.53
65.48
72.92		6.71
7.72
8.94
10.16
11.43
12.70
14.15		–
PS
PS
–
–
–
–		PS
–
PSLBE
PSLBE
–
–
–		PS
PS
PSLB
PSLB
PLB
–
–		–
–
–
PLBE
PLBE
PLBE
PLBE		–
–
–
PLBE
PLBE
PLBE
PLBE		–
–
–
PLBE
PLBE
PLBE
PLBE		–
–
–
–
PLBE
PLBE
PLBE		–
–
–
–
– PLBE
9-5/8
9-5/8
9-5/8
9-5/8
9-5/8
9-5/8
9-5/8
9-5/8
9-5/8
9-5/8
9-5/8		32.30
36.00
40.00
43.50
47.00
53.50
58.40
59.40
64.90
70.30
75.60		244.48
244.48
244.48
244.48
244.48
244.48
244.48
244.48
244.48
244.48
244.48		48.07
53.57
59.53
64.73
69.94
79.62
86.91
88.40
96.58
104.62
112.50		7.92
8.94
10.03
11.05
11.99
13.84
15.11
15.47
17.07
18.64
20.24		PS
PS
–
–
–
–
–
–
–
–
–		–
PSLB
PSLBE
–
–
–
–
–
–
–
–		–
PSLB
PSLB
PLB
PLB
–
–
– –
–		–
–
PLBE
PLBE
PLBE
PLBE
PLB
–
–
–
–		–
–
PLBE
PLBE
PLBE
PLBE
PLB
–
–
–
–		–
–
PLBE
PLBE
PLBE
PLBE
PLB
P
P
P
P		–
–
–
PLBE
PLBE
PLBE
PLB
–
–
–
–		–
–
–
–
PLBE
PLBE
PLB
–
–
–
–
10-3/4
10-3/4
10-3/4
10-3/4
10-3/4
10-3/4
10-3/4		32.75
40.50
45.50
51.00
55.50
60.70
65.70		273.05
273.05
273.05
273.05
273.05
273.05
273.05		48.74
60.27
67.71
75.90
82.59
90.33
97.77		7.09
8.89
10.16
11.43
12.57
13.84
15.11		PS
PS
–
–
–
–
–		–
PSB
PSBE
PSBE
–
–
–		–
PSB
PSB
PSB
PSB
–
–		–
–
–
PSBE
PSBE
–
–		–
–
–
PSBE
PSBE
–
–		–
–
–
PSBE
PSBE
PSBE
PSB		–
–
–
PSBE
PSBE
PSBE
PSB		–
–
–
–
–
PSBE
PSB
10-3/4
10-3/4
10-3/4		73.20
79.20
85.30		273.05
273.05
273.05		108.93
117.86
126.94		17.07
18.64
20.24		–
–
–		–
–
–		–
–
–		–
–
–		–
–
–		P
P
P		–
–
–		–
–
–
11-3/4
11-3/4
11-3/4
11-3/4
11-3/4
11-3/4		42.00
47.00
54.00
60.00
65.00
71.00		298.45
298.45
298.45
298.45
298.45
298.45		62.50
69.94
80.36
89.29
96.73
105.66		8.46
9.53
11.05
12.42
13.56
14.78		PS
–
–
–
–
–		–
PSB
PSB
PSB
–
–		–
PSB
PSB
PSB
–
–		–
–
–
PSB
P
P		–
–
–
PSB
P
P		–
–
–
PSB
P
P		–
–
–
PSB
P
P		–
–
–
PSB
P
P
13-3/8
13-3/8
13-3/8
13-3/8
13-3/8		48.00
54.50
61.00
68.00
72.00		339.72
339.72
339.72
339.72
339.72		71.43
81.10
90.78
101.19
107.15		8.38
9.65
10.92
12.19
13.06		PS
–
–
–
–		–
PSB
PSB
PSB
–		–
PSB
PSB
PSB
–		–
–
–
PSB
PSB		–
–
–
PSB
PSB		–
–
–
PSB
PSB		–
–
–
PSB
PSB		–
–
–
–
PSB
16
16
16
16		65.00
75.00
84.00
109.00		406.40
406.40
406.40
406.40		96.73
111.61
125.01
162.21		9.53
11.13
12.57
16.66		PS
–
–
–		–
PSB
PSB
P		–
PSB
PSB
–		–
–
–
P		–
–
–
P		–
–
–
–		–
–
–
P		–
–
–
P
18-5/887.50473.08130.2111.05PSPSBPSB–––––
20
20
20		94.00
106.50
133.00		508.00
508.00
508.00		139.89
158.49
197.93		11.13
12.70
16.13		PSL
–
–		PSLB
PSLB
PSLB		PSLB
PSLB
–		–
–
–		–
–
–		–
–
–		–
–
–		–
–
–
Remarks: P——Plain end;S—Short round thread;L—Long round thread;B—Buttress thread;E—Extreme-line.

Chemical compositions of casing pipe


Chemical compositions of casing pipe
StandardGradeChemical compositions(%)
API SPEC 5CTJ55CSiMnPSCrNiCuMoV
K550.34~0.390.20~0.351.25~1.50≤0.020≤0.015≤0.15≤0.20≤0.20//
N800.34~0.380.20~0.351.45~1.70≤0.020≤0.015≤0.15///0.11~0.16
L800.15~0.22≤1.000.25~1.00≤0.020≤0.01012.0~14.0≤0.20≤0.20//
P1100.26~0.3950.17~0.370.40~0.70≤0.020≤0.0100.80~1.10≤0.20≤0.200.15~0.25≤0.08

Mechanical properties of casing pipe

Mechanical properties of casing pipe
GradeTypeTotal elongation Yield strengthYield strength Tensile strength Hardness Hardness
under load (min)Mpa(max)Mpamin MpaMax (HRC)Max (HBW)
 (%)




J55-0.5379552517--
K55-0.5379552655--
N8010.5552758689--
N80Q0.5552758689--
L8010.555265565523241
L809Cr0.555265565523241
L8013Cr0.555265565523241
C90-0.562172468925.4255
C95-0.5655758724--
T95-0.565575872425.4255
P110-0.6758965862--
Q125All0.658621034931--


Product Show


Casing Pipe Manufacturing Process:

Steel ingot heating → hydraulic punching → reheating → extension → periodic rolling → reheating → sizing → cooling → straightening → pipe cutting → inspection

1. An annular heating furnace is required for ingot heating;
2. Punching and reheating with hydraulic press;
3. The oil casing plant uses a two-roller guide plate extension machine for extension;

4. Re-use a disc heating furnace for periodic rolling, and use a non-entry furnace for reheating, cooling, straightening, pipe cutting, and inspection.
