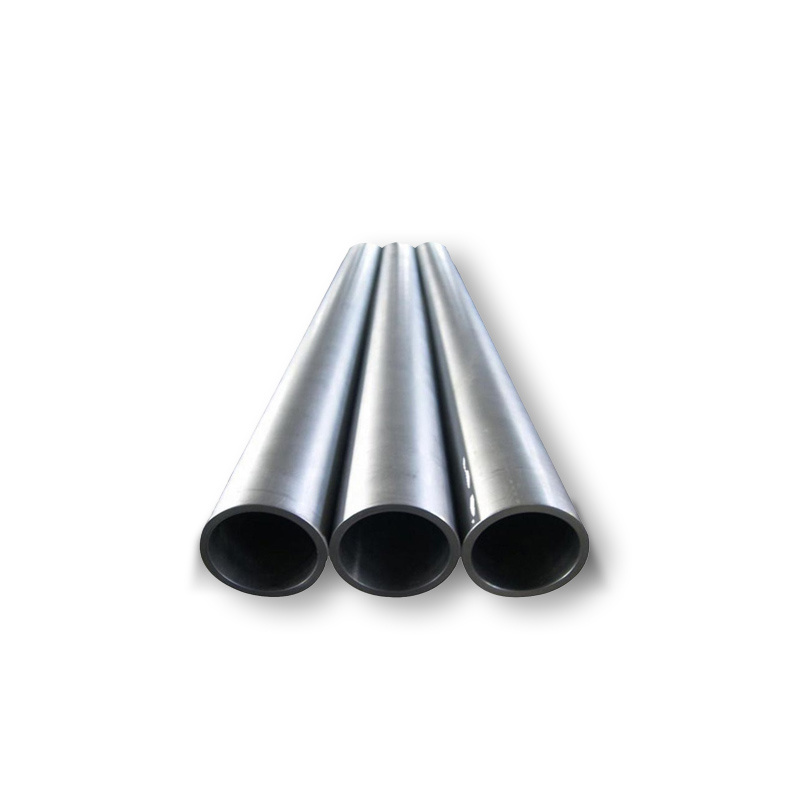

Hastelloy B-3 Pipe
Hastelloy B3 pipe performs better in terms of strength and corrosion resistance at high temperatures compared with traditional Hastelloy. B3 alloy has excellent stability and durability, especially in oxidizing and reducing environments, as well as corrosive environments such as strong acid and strong alkali.

Phone : +86 13310652223
Email : info@sdpysteel.com
Wechat :BW15610169176
Whatsapp : +8613310652223
Contact us →

Product Details


Hastelloy B3 is a nickel-based high-temperature alloy mainly consisting of nickel, molybdenum, cobalt and other elements, of which the nickel content is about 65%. This alloy material is optimized on the basis of Hastelloy B2. By improving the thermal stability of the material, it significantly enhances the corrosion resistance, while also effectively improving the hot forming and cold forming performance. In recent years, Hastelloy B3 pipe has been increasingly used in the production and manufacturing of chemical equipment. Hastelloy B3 material has many unique properties. Its high elongation provides favorable conditions for cold forming operations. Compared to austenitic stainless steel, Hastelloy B3 material is harder and therefore needs greater pressure during cold forming or step forming processes.



Product Parameters

Product Name

Hastelloy B-3 Pipe

Outer Diameter

Round Pipe

4mm-200mm

Square Pipe

10*10mm-100*100mm

Rectangular Pipe

10*20mm-50*100mm

Wall Thickness

0.6mm-6.0mm

Length

1-6 meters, Length can be customized

Standard

ASTM, AISI, JIS, GB, DIN, EN, etc.

Surface

Black, Bright Polished, Rough Turning, Matt Surface Treatment, No.4, BA, etc.

Certificate

ISO, SGS, BV

Production Technology

Hot Rolling, Cold Rolling



Chemical Composition

C

Al

Si

P

S

Ti

V

Cr

Mn

Fe

Co

Ni

Cu

Zr

Nb

Mo

Ta

W

Not MO

0.01 max

0.5 max

0.10 max

0.03 max

0.01 max

0.2 max

0.2 max

1.0 - 3.0

3.0 max

1.0 - 3.0

3.0 max

65.0 min

0.2 max

0.1 max

0.2 max

27.0 - 32.0

0.2 max

3.0 max

94.0 - 98.0



Mechanical Properties

Tensile Strength (ksi)

0.2% Yield Strength (ksi)

Elongation% in 2 inches

110

51

40



Physical Performance


Units

Temperature in°C

Density

9.22 g/cm³

Room

Specific Heat

0.089 Kcal/kg.C

Room

Melting Range

1370-1418°C

-

Modulus of Elasticity

216 KN/mm²

Room

Electrical Resistivity

137 µΩ.cm

Room

Coefficient of Expansion

10.6 µm/m °C

25 - 100°

Thermal Conductivity

11.2 w/m-° K

Room



Scope of Application

B- 3 is used in chemical processes, vacuum furnaces, mechanical parts in reduced pressure environments, etc.
