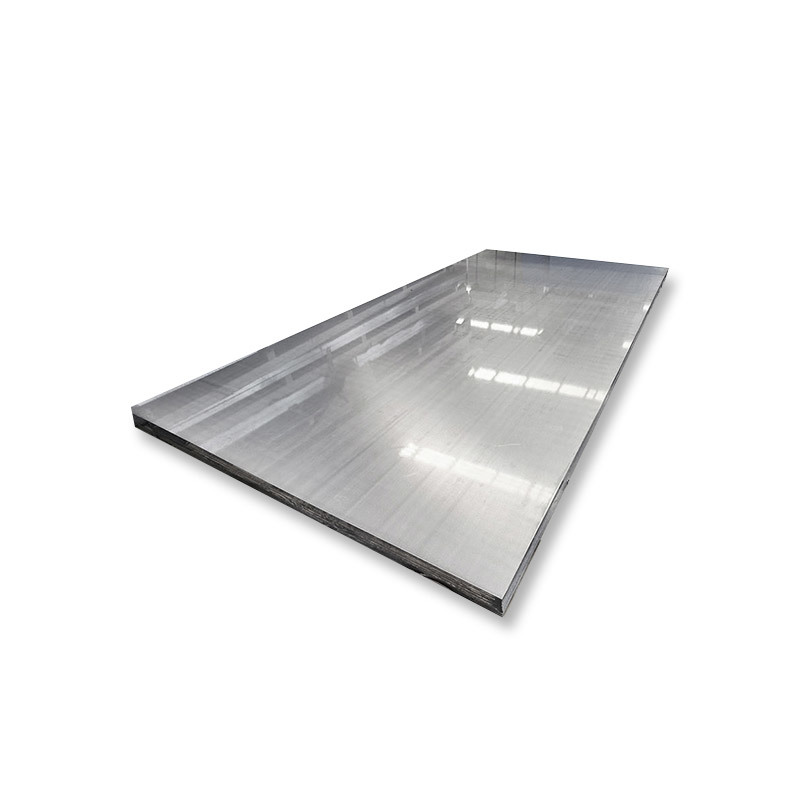

Hastelloy X Plate
Hastelloy X plate is made of a high-quality alloy material. It has excellent corrosion resistance, high temperature strength and good processing properties, and is widely used in petroleum, chemical industry, pharmaceuticals, aerospace and other fields.
Phone : +86 13310652223
Email : info@sdpysteel.com
Wechat :BW15610169176
Whatsapp : +8613310652223
Contact us →

Product Details


Hastelloy X plate has excellent corrosion resistance and can be used for a long time in various corrosive environments. This is because a large number of alloying elements are added to the alloy, such as nickel, chromium, molybdenum, etc. These elements form a dense oxide film on the surface of the alloy, which can effectively resist the erosion of various chemical substances. Hastelloy X plate has excellent high-temperature strength and can maintain high strength and hardness in high-temperature environments. This is because the alloying elements in the alloy can form strengthening molybdenum, which improves the tensile strength and yield strength of the alloy. Hastelloy X has good processing properties and can be used for casting, forging, rolling and other processing processes. During the processing process, the fluidity and plasticity of the alloy are relatively good.



Product Parameters

Product Name

Hastelloy X Plate

Thickness

0.3mm-200mm

Length

2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc.

Width

40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc.

Standard

ASTM, AISI, JIS, GB, DIN, EN, etc.

Surface

BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.

Certificate

ISO, SGS, BV

Production Technology

Hot Rolling, Cold Rolling



Chemical Composition

C

Si

P

S

Cr

Mn

Fe

Co

Ni

Mo

W

0.05 - 0.15

1.0 max

0.04

0.03

20.5 - 23.0

1.0 max

17.0 - 20.0

0.5 - 2.5

Remainder

8.0 - 10.0

0.2 - 1.0



Mechanical Properties

Tensile Strength (ksi)

0.2% Yield Strength (ksi)

Elongation% in 2 inches

95

35

35



Physical Performance


Units

Temperature in°C

Density

8.22 g/cm³

22°C

Specific Heat

0.116 Kcal/kg.

Room

Melting Range

1260-1355°C

-

Modulus of Elasticity

205 KN/mm²

Room

Electrical Resistivity

118.3 µΩ.cm

22°

Coefficient of Expansion

13.9 µm/m °C

26 - 93°

Thermal Conductivity

9.1 w/m-° K

21°



Scope of Application

Hastelloy X is used in gas turbines, petrochemicals, industrial furnaces, heat treatment equipment, nuclear engineering, jet engine combustion chambers, cabin heaters, turbine exhaust components, etc.
