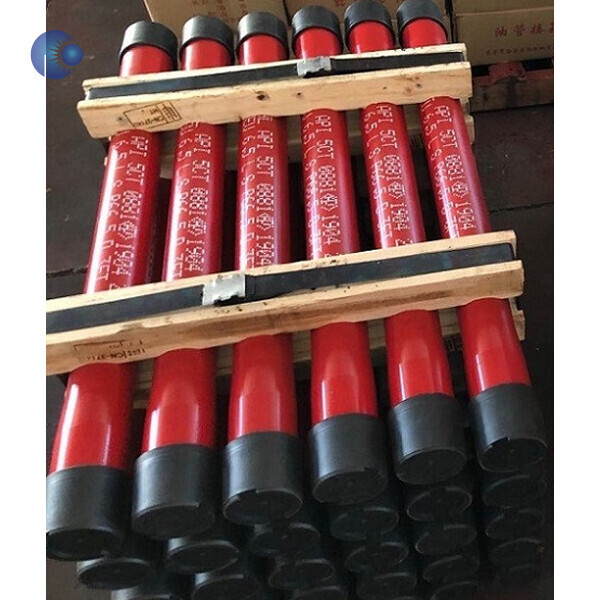

Pup Joint
Pipe Type:Pup Joints,Casing Pup Joints,Tubing Pup Joints:NUE/EUE Tubing Pipe,Perforated Pup Joints, tubing Pup Joints
Outside Diameter :2-3/8''(60.3mm) - 4-1/2(114.60mm)
Lengths :2,3,4,6,8,10 12 ft
Casing Couping : 4-1/2'' - 20'
Lengths:2,3,4,6,8,10 12 ft
Surface: Coating
Grades:J-55, N-80, N-80Q & T, L-80, P-110
Standard:API 5CT and 5B J55,K55,N80-1,N80-Q,P110, C95
Thread: BTC, LTC, STC
Phone : +86 13310652223
Email : info@sdpysteel.com
Wechat :BW15610169176
Whatsapp : +8613310652223
Contact us →

Product Details

A pup joint is Casing, Pipe or Tubing shorter in length than a standard tubular string. This allows for the adjustment and installation of tools and various tubular components when placement downhole is critical for a specific project. A Spacer Pipe is another reference used to identify pup joints. Pup joint features consist of connections, lengths, weights and material grade.

Pipe Type:Pup Joints,Casing Pup Joints,Tubing Pup Joints:NUE/EUE Tubing Pipe,Perforated Pup Joints, tubing Pup Joints

Outside Diameter :2-3/8''(60.3mm) - 4-1/2(114.60mm)

Lengths :2,3,4,6,8,10 12 ft

Casing  Couping :  4-1/2'' - 20'

Lengths:2,3,4,6,8,10 12 ft

Surface: Coating

Grades:J-55, N-80, N-80Q & T, L-80, P-110

Standard:API 5CT and 5B J55,K55,N80-1,N80-Q,P110, C95

Thread: BTC, LTC, STC

Special Service :Sweet Service, Sour Service, Anti-H2S, NACE MR0175/ISO15156

Tubing Pup Joints:
•Sizes: 2 ⅜" - 4 ½"
•Weight: Standard or Requested Weights
•Typical Lengths: 1, 2, 3, 4, 6, 8, 10, 12' (other lengths available upon request)
•Grades: J-55, N-80, L-80, P-110
•Connections EU (external-upset) and NU (non-upset)
•Options: Custom Sizes, Markings, Paint, Plating, and Inspection available on request

Casing Pup Joints:
•Outside Diameter: 4 ½" - 13 3/8"
•All weights available
•Typical Lengths: 1, 2, 3, 4, 6, 8, 10, 12' (other lengths available upon request)
•Grades: H40, J55, K55, N80, L80 T95, C110, P110, Q125
•Connections: SC, LC, BC, Semi Premium, and Premium
•Options: Custom Sizes, Markings, Paint, Plating, and Inspection available on request

 Pup Joint Options:
•Pin x Pin
•Pin x Pin with Couplings Loose
•Coupling Box x Pin with Couplings Hand Tight

•Coupling Box x Pin with Couplings Bucked-On

Tubing Pup Joint Specifications
Outside Diameter1.05 ~ 4-1/2 in (26.67 ~ 114.3 mm) nominal size OD
WeightStandard or Heavy Wall
Length2, 3, 4, 5, 6, 8, 10, 12 ft (with other lengths available upon request)
GradeH40, J55, L80, N80/Q, C90, T95, P110
ConnectionEUE, NUE
StandardAPI 5CT, API 5B
Casing Pup Joint Specifications
Outside Diameter4-1/2 ~ 20 in (114.3 ~ 508 mm) nominal size OD
WeightStandard or Heavy Wall
Length2, 3, 4, 5, 6, 8, 10, 12, 14, 16, 18, 20 ft (with other lengths available upon request)
GradeH40, J55, K55, L80, N80/Q, C90, T95, P110, Q125
ConnectionBTC, STC, LTC
StandardAPI 5CT, API 5B
Product: Pup Joint, OCTG Pup Point
Application:  Pipe Cut into different length used for connect 2 joints of tubing or casing
Size: Tubing Coupling : 2-3/8'' -  4-1/2''
 Casing  Couping :  4-1/2'' - 20'
 Length: 2, 3, 4, 6, 8, 10, 12 ft
Pipe Standard:  API 5CT and 5B J55,K55,N80-1,N80-Q,P110, C95
Surface: Coating
Thread: BTC, LTC, STC
Special Service Sweet Service, Sour Service, Anti-H2S, NACE MR0175/ISO15156
Packing: By carton, wooden case, wooden pallet or requirement of customer
Diameters:.75" through 4.5" nominal O.D.
Weights:Standard or Heavy Wall
Lengths:2, 3, 4, 6, 8, 10, 12 ft. Standard (Lengths up to 20' available upon request)
Grades:J-55, N-80, N-80 Q & T, L-80, P-110, 13-CR and other premium grades
Connections:EUE, NUE, Buttress
SPECIFICATIONS
TUBING PUP JOINT ODGRADEEND TYPELENGTH(FT)
2 3/8"J/K/L/N/PNUE/EUE2/3/4/5/6/8/10/12
2 7/8"J/K/L/N/PNUE/EUE2/3/4/5/6/8/10/12
3 1/2"J/K/L/N/PNUE/EUE2/3/4/5/6/8/10/12
4 1/2"J/K/L/N/PNUE/EUE2/3/4/5/6/8/10/12

CASING PUP JOINT ODGRADEEND TYPE
4 1/2"J/K/L/N/PLTC/STC/BTC
5"J/K/L/N/PLTC/STC/BTC
5 1/2"J/K/L/N/PLTC/STC/BTC
6 5/8"J/K/L/N/PLTC/STC/BTC
7"J/K/L/N/PLTC/STC/BTC
7 5/8"J/K/L/N/PLTC/STC/BTC
7 3/4"J/K/L/N/PLTC/STC/BTC
8 5/8"J/K/L/N/PLTC/STC/BTC
9 5/8"J/K/L/N/PLTC/STC/BTC
10 3/4"J/K/L/N/PSTC/BTC
11 3/4"J/K/L/N/PSTC/BTC
13 3/8"J/K/L/N/PSTC/BTC
